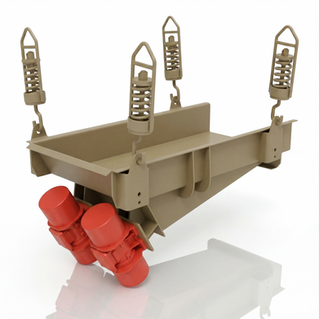

ST-GZT SERIES GRIZZLY FEEDER
Sytechs ST-GZT Series Grizzly Feeders are built for tough applications in small to medium-sized quarries, offering reliable performance and the ability to handle abrasive materials with ease. Designed for durability, they ensure steady feeding in demanding conditions.
Manufactured at our Shenyang facility in China, all Sytechs feeders are ISO 9001 and CE certified. With quality construction and proven reliability, they are a smart choice for consistent operation and long-term value.
Key Benefits:
● Long stroke capability
-
Better scalping efficiency (when the feed contains high ratio of flaky material).
● Rubber suspension
-
Smoother shut down of the unit, safety (fingers), reduced noise, and better isolation ratio.
-
Capacity Range: 150-600 t/h
-
Materials: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore, etc...
Technical Specifications:
Model | Slope | Max feeding size (mm) | Capacity (t/h) | Frequency (Hz) | Amplitude | Motor Type | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
ST-GZT0725 | 1.75 | 200 | 150-175 | 12.17 | 5-6 | Y180L-8 | 11 | 3606 |
ST-GZT1225 | 3 | 500 | 260-300 | 12.17 | 4.5-5 | Y180L-8 | 11 | 3698 |
ST-GZY1230A | 3.6 | 600 | 260-300 | 12.17 | 4.5-5 | Y180L-8 | 11 | 3701 |
ST-GZT1332 | 4.16 | 500 | 270-310 | 12.17 | 4-4.5 | Y180L-8 | 11 | 4540 |
ST-GZT1535 | 5.25 | 600 | 300-400 | 12.17 | 4.5-5 | Y200L-8 | 15 | 4745 |
ST-GZT1560 | 9 | 960 | 400-600 | 13.33 | 4 | Y180L-4 | 22 | 10934 |
